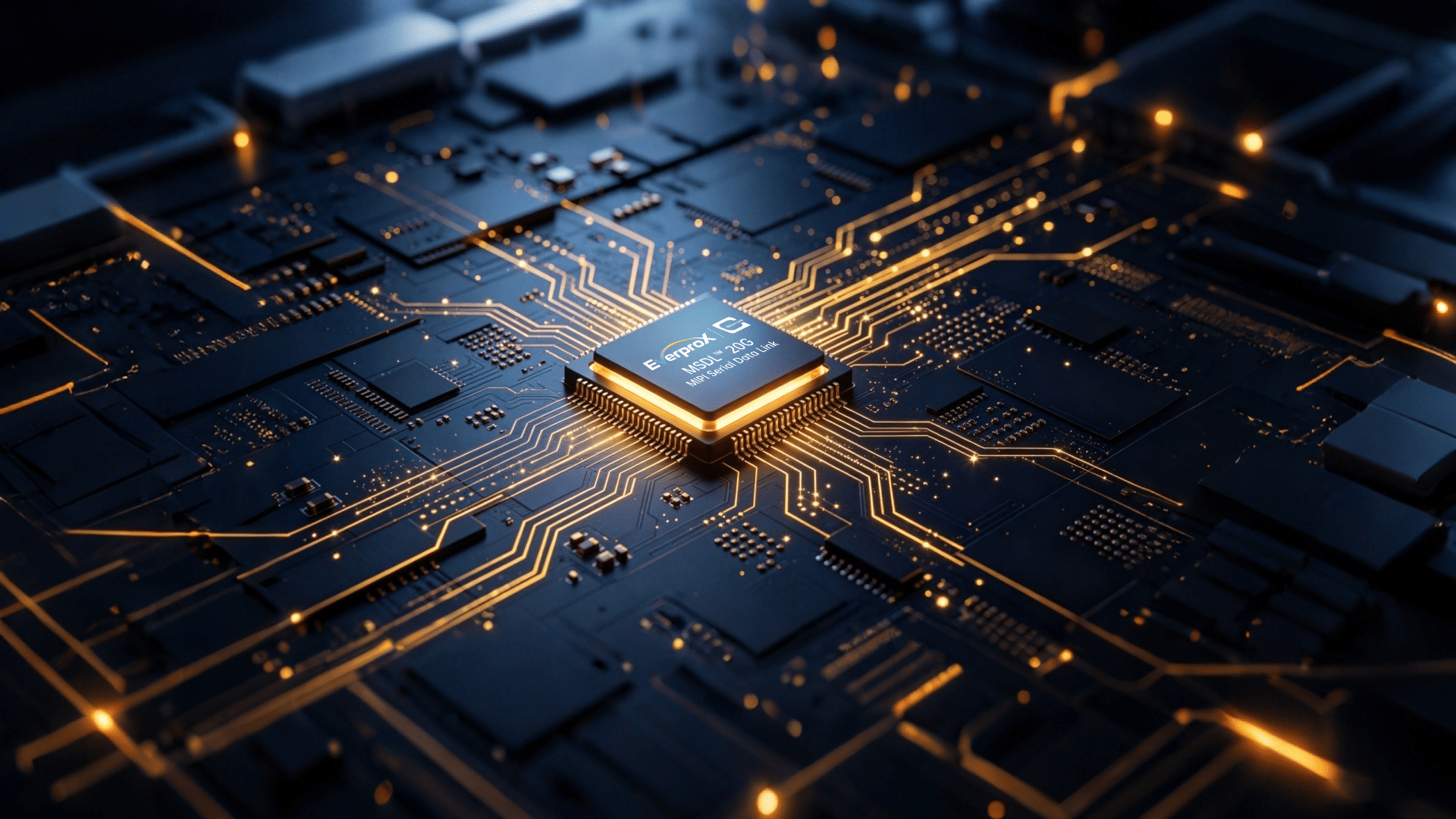

MSDL™ 20G chip on circuit board

MSDL™

MIPI Serial Data Link

MSDL™ 20G – Dual-Port 10 Gbps MIPI D-PHY SerDes for Next-Generation High-Speed Connectivity

MSDL™ 20G is Silicon Line's next-generation dual-port MIPI D-PHY SerDes solution, delivering up to 20 Gbps bandwidth. Designed for both optical and electrical links, it enables compact, low-power connectivity between high-resolution cameras, displays, and processors.

Ultra-Low Power
<100 mW per link in both optical and electrical modes, minimizing thermal load and extending system efficiency.
Higher Max. Speed
Two 10 Gbps MIPI D-PHY ports enable high-resolution, high-frame-rate camera and display connectivity.
Optical & Electrical Flexibility
It can be used to transport over optical or electrical links, providing utmost design flexibility.
Longer Reach, Smaller Footprint
Extend MIPI connectivity to tens of meters while replacing bulky copper cabling with thin, lightweight, EMI-immune optical links.
Compliant with MIPI Alliance USB Implementers Forum ISO HDMI DisplayPort
Demo Video
Product Overview

Product features

0Gbps
Combined bandwidth
0mW
Per link, optical or electrical
Up to 4 cameras
Serialized per IC
4mm x 4mm
Micro-BGA or bare die
Dual-Port MIPI D-PHY Serializer with Integrated Driver/TIA
Each port consists of a 4-lane data plus clock D-PHY input with integrated equalization and supports a maximum bandwidth of 10 Gbps.
Dual-Port MIPI D-PHY Serializer
Longer Reach via Optical Link
Extends the length of a D-PHY cable up to tens of meters.
Longer Reach via Optical Link

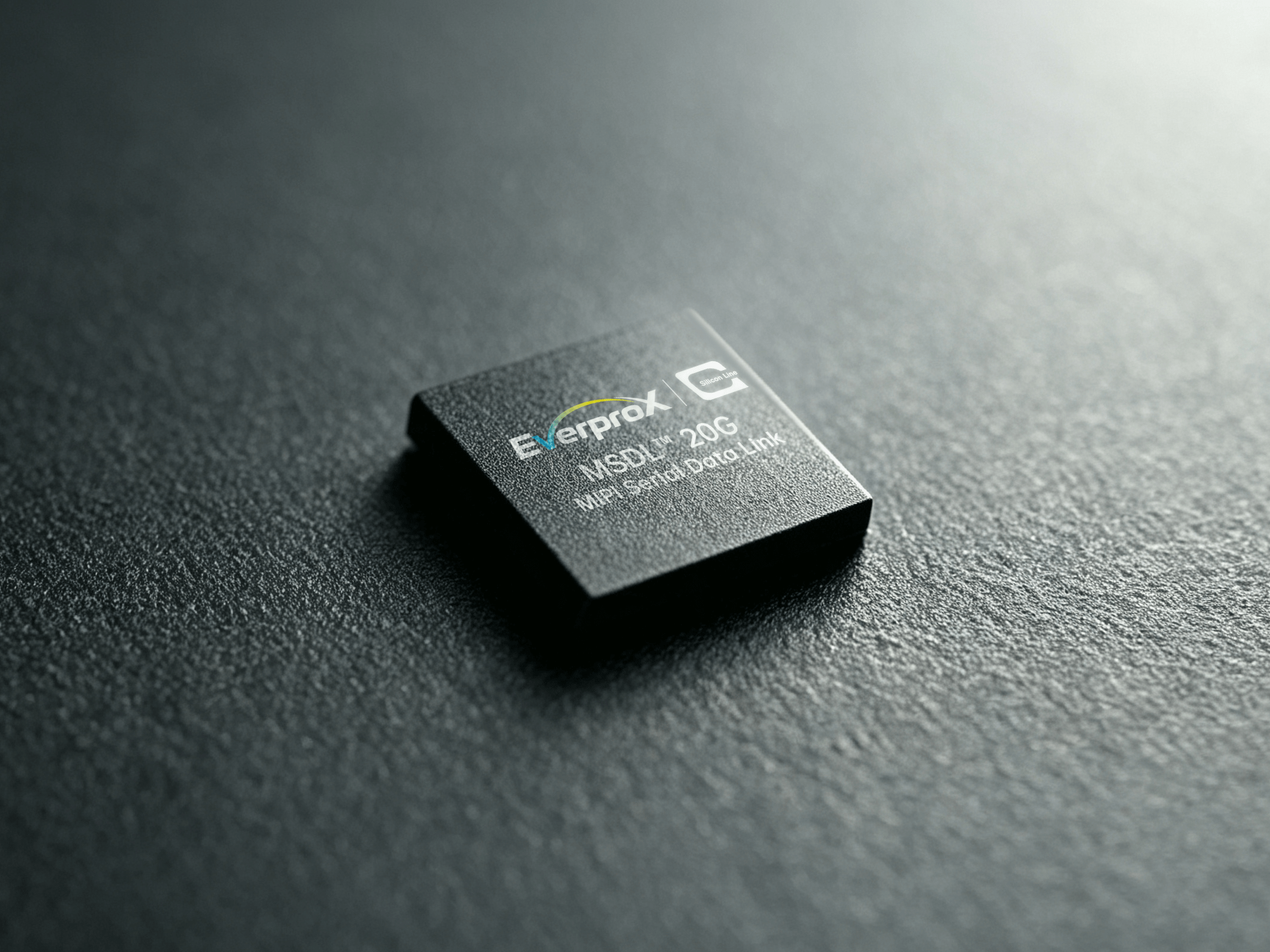

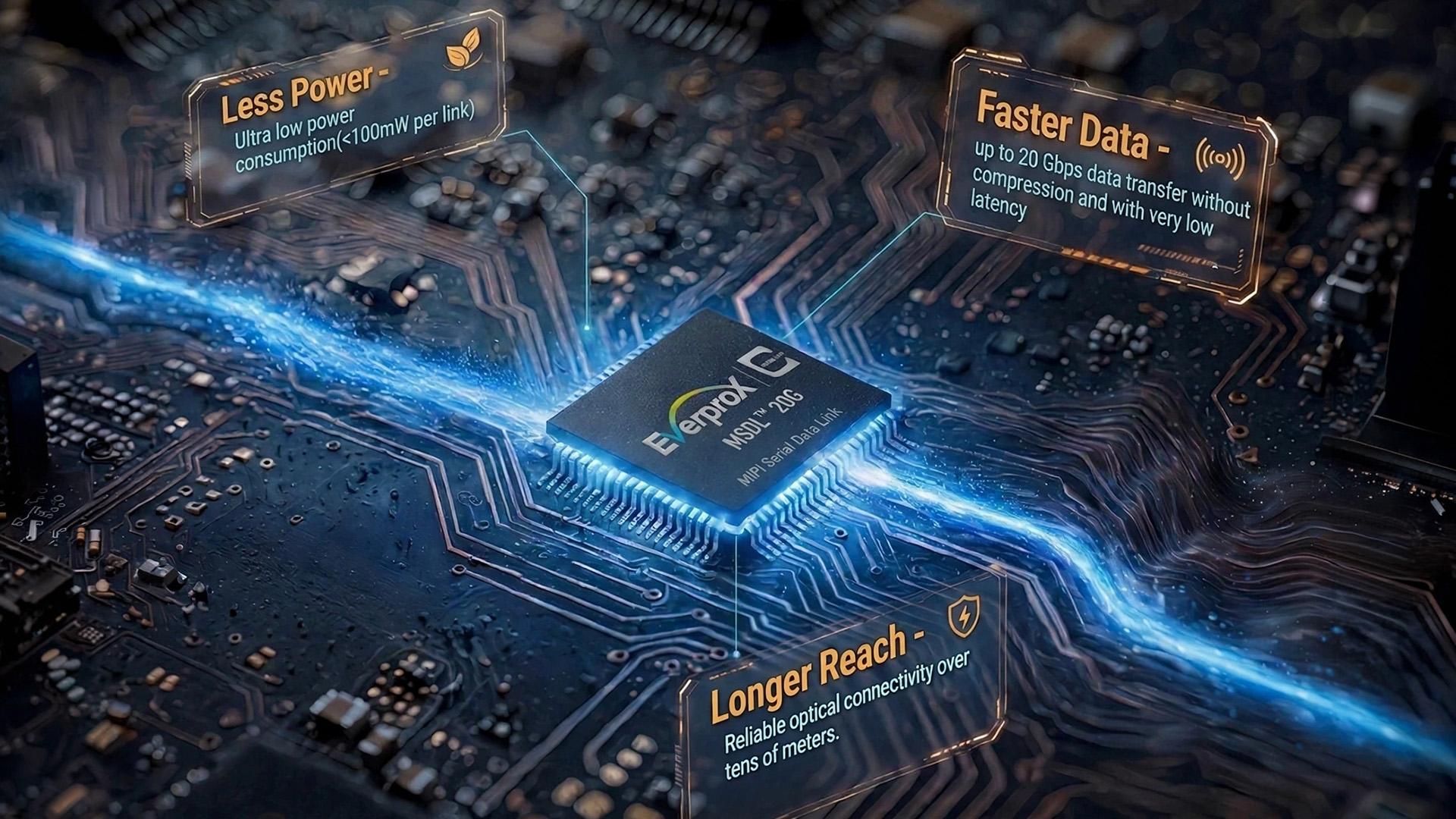

MSDL™ 20G chip
Up to 4 cameras
Up to 4 Cameras
Support simultaneous 4K streams over two serial links.
Integrated Sideband Serialization
Integrated Sideband Serialization
Optional sideband serialization of low-speed signals: 5x GPIO, I2C, MCLK, SPI, PDM – with only 1 additional reverse link.

System Architecture

Camera 1 Camera 2 Camera 3 Camera 4 MSDL™ 20G MIPI Serial Data Link 2× SERIAL LINKS Host / Processor Sideband: GPIO · I2C · MCLK · SPI · PDM

Technical Specifications

  • Data Rate20 Gbps
  • Power Consumption• Optical Mode: Serializer 17 mW, De-serializer 54 mW (Typical)• Electrical Mode: Serializer 27 mW, De-serializer 60 mW (Typical)
  • Package Size• 4mm x 4mm Micro-BGA• Bare die
  • Operating Temperature−20°C to +85°C
Applications

One Technology. Infinite Possibilities.
